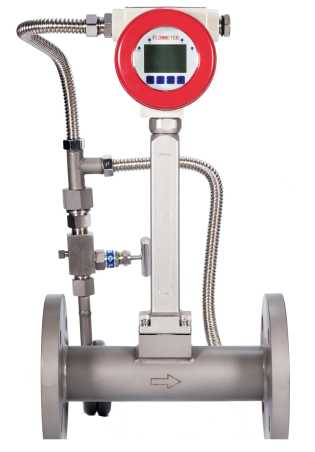

Đồng Hồ Đo Lưu Lượng Khí Theo Nguyên lý Vortex-DN125
Ứng Dụng (Apply): Dùng cho các loại khí như: CO,CO2, O2, N2, H2, H2S, HNO3,Gas…. Thương hiệu (Origin): Gentekelectronic Xuất Xứ (Origin): Turkey (EU) Size ống (Pipe Size): DN125 Thang đo (Flow range): 150～2000m3/h
Ứng Dụng (Apply): Dùng cho các loại khí như: CO,CO2, O2, N2, H2, H2S, HNO3,Gas….
Model: GTE-LUGE-MM2-DN125
Xuất Xứ (Origin): Turkey
Size ống (Pipe Size): DN125
Vật Liệu Thân (Body Material): Thép Carbon, SS304
Nguồn Cung Cấp (Power Supply): Pin, 24VDC hoặc 220VAC
Tín Hiệu Ngõ Ra (Output): 4~20mA, Pulse.
Truyền Thông (Communication): RS485, Hart
Nhiệt Độ Tối Đa (Max Temperature): 260°C
Áp Suất Tối Đa (Max Pressure): 16 Bar
Introduction:

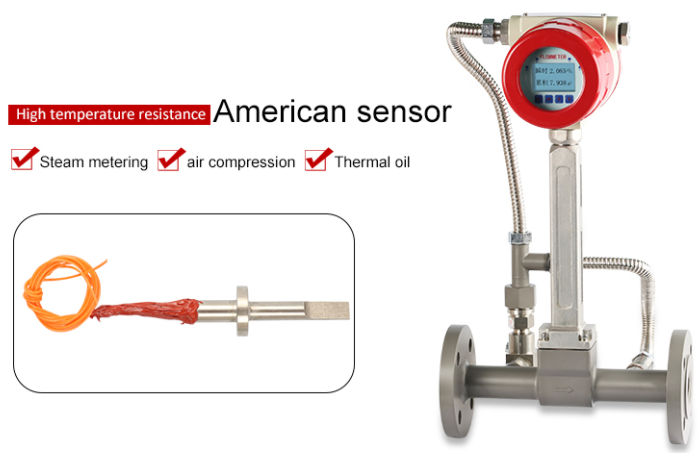

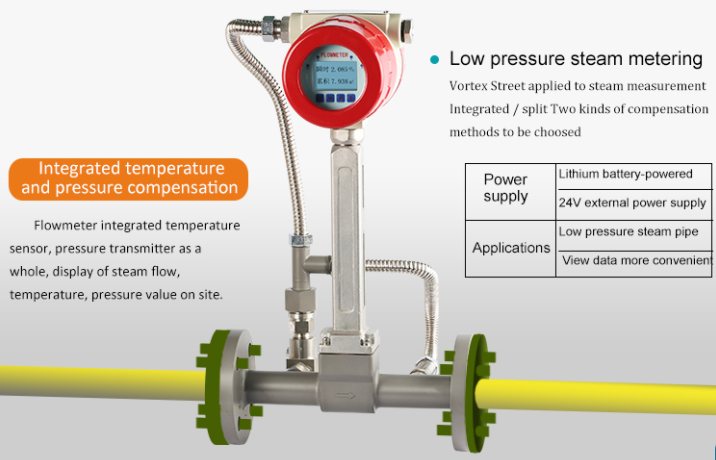

GTE-LUGE Vortex flowmeter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal to measure the flow. With temperature and pressure compensation, it is suitable for the detection of gas flows in different environments, such as steam and compressed air and other gas.
| Product | Vortex flowmeter |
| Model | GTE-LUGE |
| Wafer connection | DN10-DN500(priority PN2.5MPa) |
| Flange connection | DN10-DN80(priority PN2.5MPa） |
| DN100-DN200(priority PN1.6MPa） | |
| DN250-DN500(priority PN1.6MPa） | |
| Accuracy | 1.0% 1.5% 2.0% |
| Range Ratio | 1:8~1:30 |
| Medium Temperature | -40℃~+260℃，-40℃~+300℃ |
| Power Supply | 24VDC±5%， Li battery(3.6VDC) |

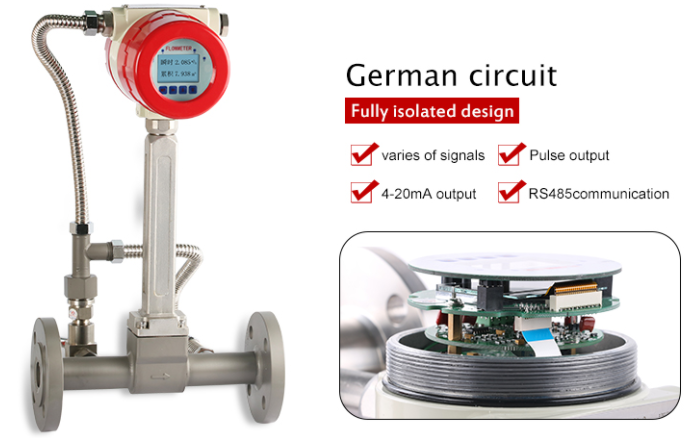

| Output signal | 4-20mA or frequency |
| Interface | RS485,HART |
| Body Materials | Stainless stell |
| Ingress protection | IP65(IP67, IP68 need to customize) |
