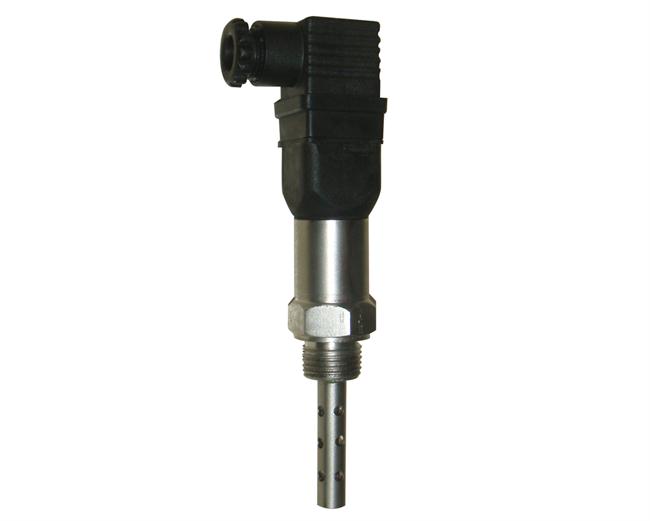

Báo Mức Chất Lỏng Dạng Điện Dung-Capacitive Level Switch

Connection terminals

Max. 2mm² (AWG 14) sectioned cable input. PG9

Signal delay

1 sec max

Sensitivity

Adjustable

Emited frequency

1,5MHz

Power supply

15..35VDC  1.2W

Signal output

Relays one change-over contact AC max. 250V, 2A, 500VA

Indicating light

Signal output and Diagnostic by built-in LEDs

Protection class

IP68 (cable cover fully closed, and by using a fitting 4 – 8mm thick and full-bored)

Housing

Cast aluminium enclosure IP68

Enclosure

IP 67 or EN 60529

Screw Material

Black anodized steel

Screw size

R 1½. Whitworth screw thread DIN 259

Probe Material

Delrin® POM-C EN 10204

Surface treatment

Electrostatic powder paint  RAL6014 over Noncorrosive alodine coating

Weight

0,8 kg

Ambient temp. (housing)

-20°C.. +60°C

Process temperature

-40°C.. +100°C

Min. density

50 g/l

Grain size

18mm Max.

Mechanical load

500N laterally (on probe)

Max. Tensile force

0.5kN

Max process pressure

10 bar
